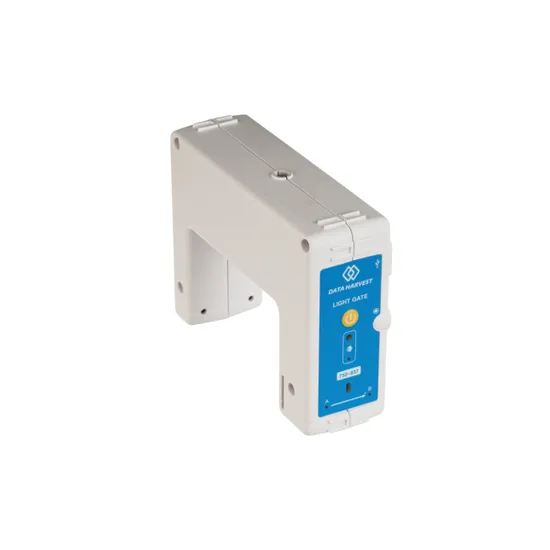

Wireless Light Gate

The Wireless Light Gate Sensor is a cutting-edge data logging tool designed for high-precision timing experiments in physics and engineering. Featuring dual light gates (A and B) within a single housing, this sensor delivers accurate timing data to 1 µs precision with a 940 nm wavelength and a 2.5 cm gate separation. It is the ideal solution for motion experiments, including velocity, acceleration, and free-fall investigations.

Educational Benefits:

• Provides high-precision timing data for motion and dynamics experiments.
• Enables real-time data collection through EasySense2 software.
• Supports wireless or wired connectivity for versatile classroom applications.
• Enhances STEM learning by integrating data logging with scientific analysis.

Classroom Integration Ideas:

• Use for speed and acceleration measurements of rolling or falling objects.
• Conduct pendulum timing experiments for accurate oscillation analysis.
• Link multiple sensors to study collision dynamics in physics.
• Explore free-fall and projectile motion with real-time data capture.

Product Features:

• Dual light gate system within a single housing.
• Infra-red auxiliary port for wider gate use.
• Sync socket to connect multiple light gates for improved accuracy.
• Wireless connectivity via Bluetooth 4.2, with up to 30m range in open air.
• USB wired option for enhanced precision in synchronised experiments.
• Latency note: Wireless sync between devices introduces a 2 ms delay; for zero-latency experiments, use a sync link cable.

Product Specifications:

• Measurement Range: Timing data with 1 µs accuracy.
• Infra-red Wavelength: 940 nm.
• Gate Separation: 2.5 cm.
• Connectivity: USB wired / Bluetooth wireless.
• Internal Battery: Rechargeable lithium-ion 3.7V.
• Power Requirement: 5V, 500mA.
• Storage & Operating Temperature: 0 - 40 °C.
• Device Dimensions: 130 (H) x 40 (W) x 100 (L) mm.
• Weight: 144g.

Included in the Kit:

• 1x Wireless Light Gate Sensor
• 1x Link Cable
• 1x Mounting Rod
• Sensor Manual (digital download)
• EasySense2 Software (digital download)

Smart Wireless Technology:

• Auto-calibration & long-life rechargeable battery for hassle-free operation.
• Functions as an independent data logger (via Bluetooth or USB).
• Real-time data logging & analysis through EasySense2 software (compatible with PCs, tablets, Mac, Chromebook, and Windows).
• Share function allows students to view and analyse live data across multiple devices.
• Compatible with the wired SmartQ range via the V-Hub Sensor Link.

Additional Resources & Support:

• Watch tutorial videos on YouTube to maximise sensor use.
• Free online worksheets for engaging classroom activities.
• 5-year warranty from Data Harvest.

This advanced wireless light gate sensor is the ultimate tool for physics experiments, allowing students to explore motion, speed, and acceleration with unparalleled precision and real-time data logging!
